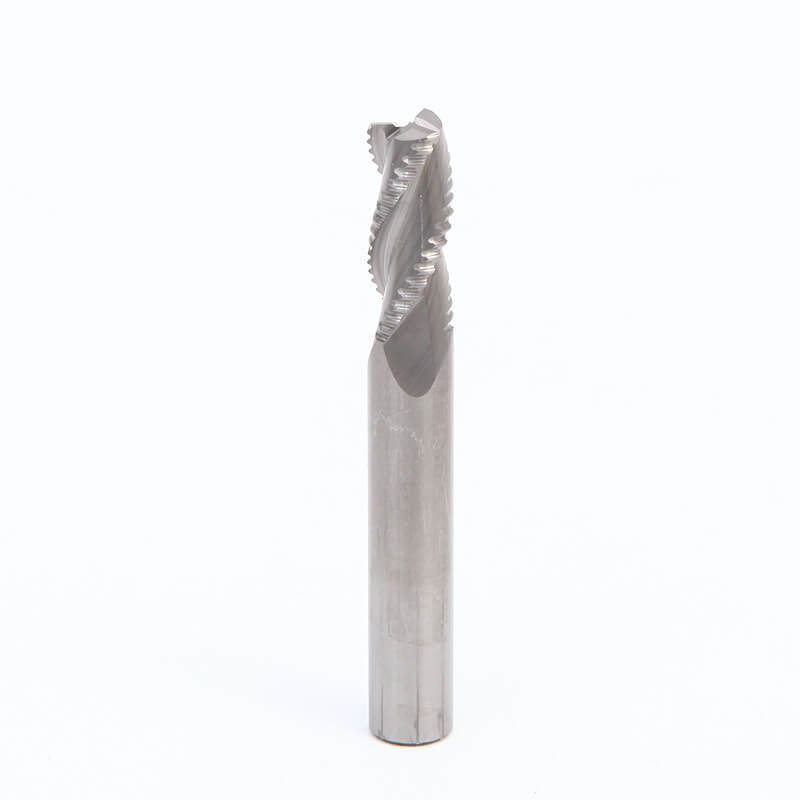

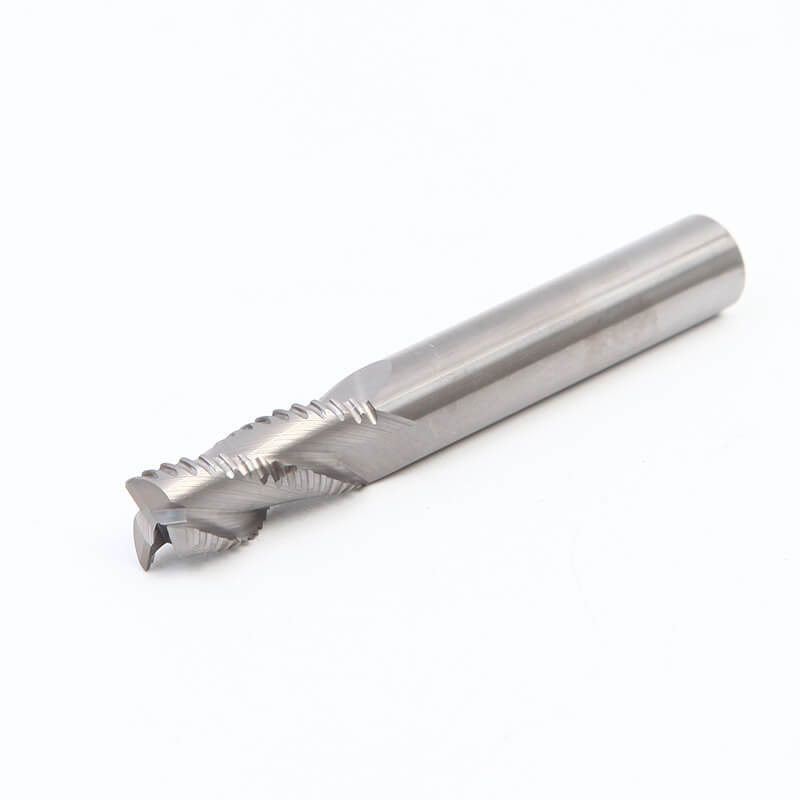

كربيد الصلبة الخشنة الطحن القاطع الألومنيوم التخشين نهاية المطاحن في 3 المزامير
وصف المنتج
a، Co: 10٪، Wc: 90٪
ب ، TRS:> 3600 نيوتن / مم 2
c، HRA: 91.8-92.4، HRC: 45/55/60/65
د ، حجم الحبوب: 0.4-0.6μm
ه ، زاوية هيليكس: 30 درجة
ورقة الحجم:
رقم الكود. | Diamter د | طول القطع ل | الطول الاجمالي L | عرقوب د | المزامير Z |
| 2GW4-01002050 | 1 | 3 | 50 | 4 | 2 |
| 2GW4-01504050 | 1.5 | 4 | 50 | 4 | 2 |
| 2GW4-02050500 | 2 | 5 | 50 | 4 | 2 |
| 2GW4-02507050 | 2.5 | 7 | 50 | 4 | 2 |
| 2GW4-03008050 | 3 | 8 | 50 | 4 | 2 |
| 2GW4-04010050 | 4 | 10 | 50 | 4 | 2 |
| 2GW4-04015075 | 4 | 15 | 75 | 4 | 2 |
| 2GW4-04020100 | 4 | 20 | 100 | 4 | 2 |
| 2GW4-05012050 | 5 | 13 | 50 | 6 | 2 |
| 2GW4-06015050 | 6 | 15 | 50 | 6 | 2 |
| 2GW4-06020075 | 6 | 20 | 75 | 6 | 2 |
| 2GW4-06020100 | 6 | 30 | 100 | 6 | 2 |
| 2GW4-06020060 | 8 | 20 | 60 | 8 | 2 |
| 2GW4-08025075 | 8 | 25 | 75 | 8 | 2 |
| 2GW4-08025100 | 8 | 35 | 100 | 8 | 2 |
| 2GW4-010025075 | 10 | 25 | 75 | 10 | 2 |
| 2GW4-010040100 | 10 | 40 | 100 | 10 | 2 |
| 2GW4-012020075 | 12 | 30 | 75 | 12 | 2 |
| 2GW4-012040100 | 12 | 40 | 100 | 12 | 2 |
| 2GW4-014020080 | 14 | 30 | 80 | 14 | 2 |
| 2GW4-014100100 | 14 | 30 | 100 | 14 | 2 |
| 2GW4-016040100 | 16 | 40 | 100 | 16 | 2 |
| 2GW4-018040100 | 18 | 40 | 100 | 18 | 2 |
| 2GW4-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW4-06040150 | 6 | 40 | 150 | 6 | 2 |
| 2GW4-08050150 | 8 | 50 | 150 | 8 | 2 |
| 2GW4-010050150 | 10 | 50 | 150 | 10 | 2 |
| 2GW4-012050150 | 12 | 50 | 150 | 12 | 2 |
| 2GW4-014060150 | 14 | 60 | 150 | 14 | 2 |
| 2GW4-016060150 | 16 | 60 | 150 | 16 | 2 |
| 2GW4-018060150 | 18 | 60 | 150 | 18 | 2 |
| 2GW4-020060150 | 20 | 60 | 150 | 20 | 2 |
